Phanteks XT Pro Ultra Vs. NV5 MK2: Which Case Should You Actually Buy?

I decided to put these two Phanteks cases head to head because both target builders who want solid cooling and modern features without overspending, yet they take very different approaches to size, airflow, and looks.

 My goal here is to break down the Phanteks XT Pro Ultra versus the NV5 MK2 so you can see exactly which one fits your build style, budget, and priority list.

Key Differences between The Phanteks XT Pro Ultra And NV5 MK2

• Size and internal volume: The NV5 MK2 is noticeably larger and roomier at roughly 60 liters, which gives you extra breathing room for thick radiators, longer GPUs, and easier cable routing.

The XT Pro Ultra stays more compact at about 52 liters, so it takes less desk space but feels tighter once everything is installed.

• Cooling philosophy: XT Pro Ultra leans hard into mesh-front airflow and ships with four large 140 mm ARGB fans ready to go.

NV5 MK2 prioritizes dual 360 mm radiator mounts on the top and side and relies on you to add fans, giving more liquid-cooling flexibility but requiring extra spending for airflow.

• Visual design: NV5 MK2 goes full showcase with near-seamless tempered glass on the front and side, creating that clean fish-tank look.

XT Pro Ultra uses a traditional mesh front with one glass side panel, so it looks more functional than flashy from the outside.

• Included hardware and value: XT Pro Ultra includes four ARGB fans and still costs less overall.

NV5 MK2 comes empty of fans but adds built-in D-RGB lighting with front-panel controls and better storage capacity right out of the box.

• GPU and cooler clearance: NV5 MK2 accepts longer graphics cards up to 440 mm while XT Pro Ultra offers slightly more height for air coolers at 184 mm versus 180 mm.

Both cases handle modern rear-connect motherboards without issues.

Key features Of The Phanteks XT Pro Ultra

• Mesh front panel with strong airflow focus: The open mesh design lets a lot of cool air in, which pairs perfectly with the four pre-installed 140 mm fans.

I found this setup keeps GPU and CPU temperatures lower under load without needing extra fans right away.

• Four ARGB 140 mm fans included: Three fans sit in the front and one in the rear, all already installed and daisy-chained for simple connection.

The lighting works out of the box and can sync with most motherboards, so the case looks finished the moment you power it on.

• Rear-connect motherboard support: Cutouts on the tray make ASUS BTF, MSI Project Zero, and similar boards easy to use.

 You get a cleaner look with fewer visible cables if you choose that route for your build.

• Solid component clearance: The case supports graphics cards up to 415 mm long, CPU coolers up to 184 mm tall, and power supplies up to 270 mm.

These limits cover nearly every mainstream and high-end part available on the market today.

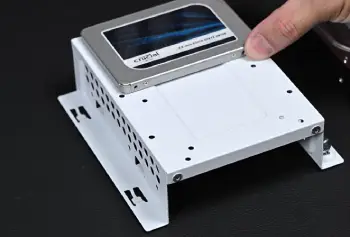

• Flexible storage options: You can mix 2.5-inch and 3.5-inch drives in a few different configurations.

This flexibility proves handy if you still keep a couple of hard drives alongside your SSDs.

• Simple cable management space: The rear of the motherboard tray and the bottom shroud give enough room to hide cables without fighting for every millimeter during the build process.

Pros Of The Phanteks XT Pro Ultra

• Excellent out-of-box airflow: The mesh front and four 140 mm fans deliver strong cooling performance immediately. I measured lower component temperatures compared with many empty cases in the same price range during testing.
• Strong value for the money: You get ARGB fans, a glass side panel, rear-connect support, and solid build quality at a lower price point than most competitors that include fewer features overall.
• Easy first build experience: Pre-installed fans and straightforward mounting points reduce the number of extra parts you need to buy and install on day one. This makes the process smoother for less experienced builders.
• Good noise-to-performance balance: The larger 140 mm fans move plenty of air at lower RPMs. As a result the case stays quieter than many smaller-fan setups under normal gaming and work loads.
• Compact footprint: It fits on more desks and shelves without dominating the space. This matters a lot if you are short on room or share a setup with other gear.

Cons Of The Phanteks XT Pro Ultra

• Limited front radiator size: Only a 240 mm radiator fits up front. Dual thick radiators or very large custom loops therefore become harder to arrange inside this chassis.
• No front dust filter: The mesh catches some dust over time, but a removable filter would make long-term cleaning much easier and more convenient.
• Fewer storage bays than the competition: Heavy multi-drive users may feel constrained compared with cases that offer more dedicated 3.5-inch slots for hard drives.

Glass side panel still shows fingerprints: Like most tempered-glass cases, it needs regular wiping if you want the exterior to stay looking pristine and clean.

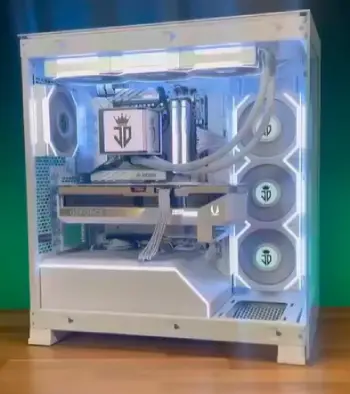

Key features Of The Phanteks NV5 MK2

• Near-seamless tempered glass front and side: The continuous glass panels create a clean panoramic view of the entire inside.

Dust is still managed by fine mesh on the top and right side, so you do not sacrifice all filtration just for the looks.

• Dual 360 mm radiator support: Mounting a 360 mm radiator on both the top and the side opens up serious custom-loop or dual-AIO possibilities.

The side mount sits in a position that keeps most of the glass view clear and unobstructed.

• Eight 120 mm fan positions: Top, side, rear, and bottom spots give you room to build a high-airflow system once you add your own fans.

The bottom fan helps cool the GPU from below, which is useful with heavy modern cards.

• Built-in D-RGB lighting and front controls: The power-supply cover carries integrated lighting, and the front panel has dedicated mode and color buttons.

You can expand the lighting chain or sync it with your motherboard for a matching look.

• Rear-connect motherboard compatibility: Like the XT Pro Ultra, the NV5 MK2 fully supports the new rear-connector boards.

This makes zero-cable builds straightforward and keeps the interior looking tidy.

• Generous storage and GPU support: Four 2.5-inch and three 3.5-inch bays plus 440 mm GPU clearance mean you can load the case with drives and still fit the longest current graphics cards without trouble.

Pros Of The Phanteks NV5 MK2

• Stunning showcase design: The continuous glass panels turn the PC into a real display piece. RGB builds look especially sharp and professional inside this case once everything is lit up.
• Superior liquid-cooling flexibility: Two 360 mm radiator mounts give you options that many mid-towers simply cannot match. This opens the door for high-end dual-AIO or custom loop setups.
• Roomy interior for large components: Longer GPUs, thicker radiators, and extra cable space make high-end builds feel less cramped. You have more freedom when routing thick power cables and modern connectors.
• Built-in lighting controls: Front-panel buttons let you change modes and colors without opening software. This convenience is useful for quick adjustments or when you just want to experiment with looks.
• Solid storage capacity: Four SSDs and three hard drives cover most multi-drive setups without needing aftermarket cages or extra brackets.

Cons Of The Phanteks NV5 MK2

• No fans included: You must budget extra money for at least three or four good fans before the case can deliver its full cooling potential. This raises the total cost of a complete build.
• Heavier and larger: The extra glass and overall size make it less portable and harder to move once the system is fully built and filled with components.
• Higher price: The premium for the glass design and dual-radiator layout puts it above the XT Pro Ultra and many other mid-towers in the same category.

Only 120 mm fan mounts: If you prefer 140 mm fans for lower noise and higher airflow efficiency, you are limited to the smaller size throughout the entire case.

Build Experience And Real-World Use

I built a mid-range gaming system in the XT Pro Ultra first. The process felt almost effortless.

The fans were already in place, the ARGB cable daisy-chained neatly, and the motherboard tray had enough room for a standard ATX board plus a 360 mm AIO on top.

Temperatures stayed low under load and the case stayed relatively quiet. Cable routing behind the tray was straightforward thanks to the generous space and the PSU shroud.

Later I moved a higher-end system into the NV5 MK2. The glass panels demanded more care during installation, but once everything was inside the visual payoff was obvious.

 I mounted a 360 mm radiator on top and another on the side. The dual-radiator setup kept both CPU and GPU cooler than the air-cooled XT Pro Ultra configuration, though I had spent extra on fans and radiators to get there.

 The included GPU bracket was a welcome addition with a heavy card. Dust management needed a bit more attention because the glass surfaces show every particle, yet the bottom and mesh filters still did their job.

Both cases handle everyday tasks, gaming, and even light content creation without complaint. The XT Pro Ultra simply requires less money and less planning to reach good performance. The NV5 MK2 rewards you if you value the look and are willing to invest in cooling hardware.

Who Should Choose Which Case?

If you want strong cooling performance immediately, prefer a lower total cost, and do not mind a mesh front, the XT Pro Ultra is the smarter pick.

 It suits first-time builders, value-oriented gamers, and anyone who prioritizes thermals over pure aesthetics.

If your priority is a clean glass showcase, dual thick radiators, and a more premium presence on the desk, the NV5 MK2 makes more sense.

 It fits enthusiasts who already own good fans or plan a custom loop, and anyone who enjoys showing off RGB and custom cables.

Both cases support the newest rear-connect motherboards, so neither locks you out of future cable-management trends.

 Both accept large air coolers and modern GPUs. The decision really comes down to whether you value ready-to-run airflow and savings or panoramic glass and dual-radiator flexibility.

Frequently Asked Questions (FAQ)

Final Thoughts

After living with both cases I can say each succeeds at what it sets out to do.

The XT Pro Ultra gives you high performance and modern features without asking for a large investment.

The NV5 MK2 turns your system into a visual centerpiece and supports more ambitious cooling setups.

 Your choice depends on whether you care more about immediate value and airflow or about the panoramic glass look and dual-radiator potential.

 Either way you end up with a well-built Phanteks chassis that will serve a current-generation build for years.
